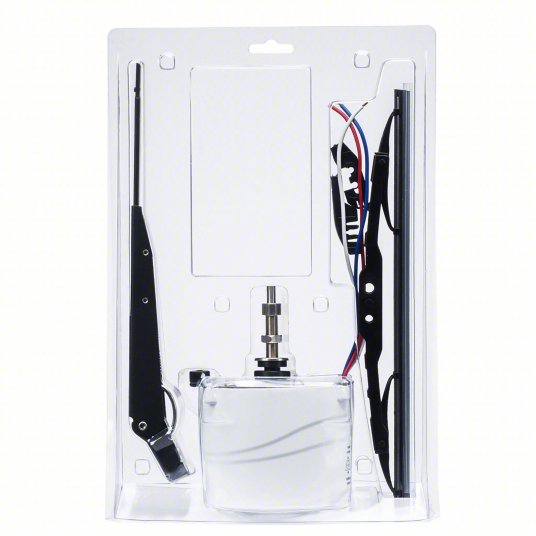

For light duty applications, this compact-sized motor is sized to accommodate small windshields.
With an armature case measuring only 2-1/2" x 4-3/8" (64mm x 110mm), it can be located in small spaces, and yet still drive 14" (350 mm) arms and blades
• SS radial wiper arm is adjustable: 11" to 14"
• Supplied with 11" blade for smaller windshields
• Motor: 8 N·m torque (∼5.9 ft·lb force); CE certified
• Shaft: 1", pinch bolt (pin) type
• Speeds: 1 speed; 54 sweeps per second
• Park: coast-to-park circuitry; user adjustable left or right (as viewed from the bow of the boat)
• Sweep: 80° or 110° (not adjustable)
• UV resistant waterproof case
