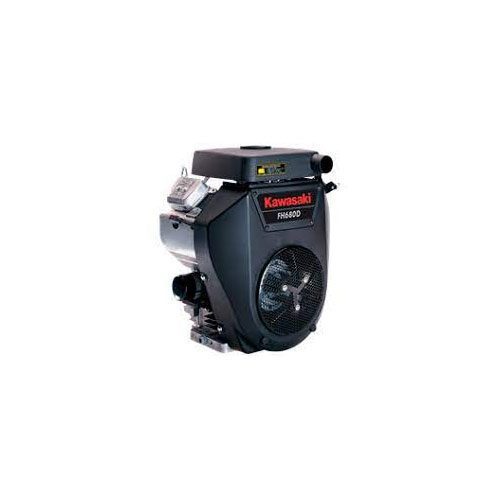

Kawasaki Complete Engine F Series- FH680D Golf Cart is designed for heavy load applications, FH Series engines are ideal for hydraulic power systems and direct drive configurations. The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349. Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
Product Features


• Pressurized lubrication
• Dual element air filter
• Internally vented carburetor
• Cast iron cylinder liners
• Overhead V-valves
• Rotating grass screen

Kawasaki Complete Engine F Series- FH680D Golf Cart

Kawasaki Complete Engine F Series- FH680D Golf Cart is designed for heavy load applications, FH Series engines are ideal for hydraulic power systems and direct drive configurations. The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349. Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
Product Features


• Pressurized lubrication
• Dual element air filter
• Internally vented carburetor
• Cast iron cylinder liners
• Overhead V-valves
• Rotating grass screen

Technical Specifications

Engine Type: Air-cooled, 4-stroke, Horizontal shaft, OHV
Number of cylinders: 2
Bore x stroke: 75.2 x 76 mm
Displacement: 675 cm³
Max. power: 14.5 kW (19.4 hp) / 3600 rpm
Max. torque: 46.4 Nm (34.2 ft.lbs) / 2200 rpm
Oil capacity (litres): 1.6 litres
Dry weight: 44.5 kg
Dimensions (L x W x H) (mm): 349 x 430 x 492
